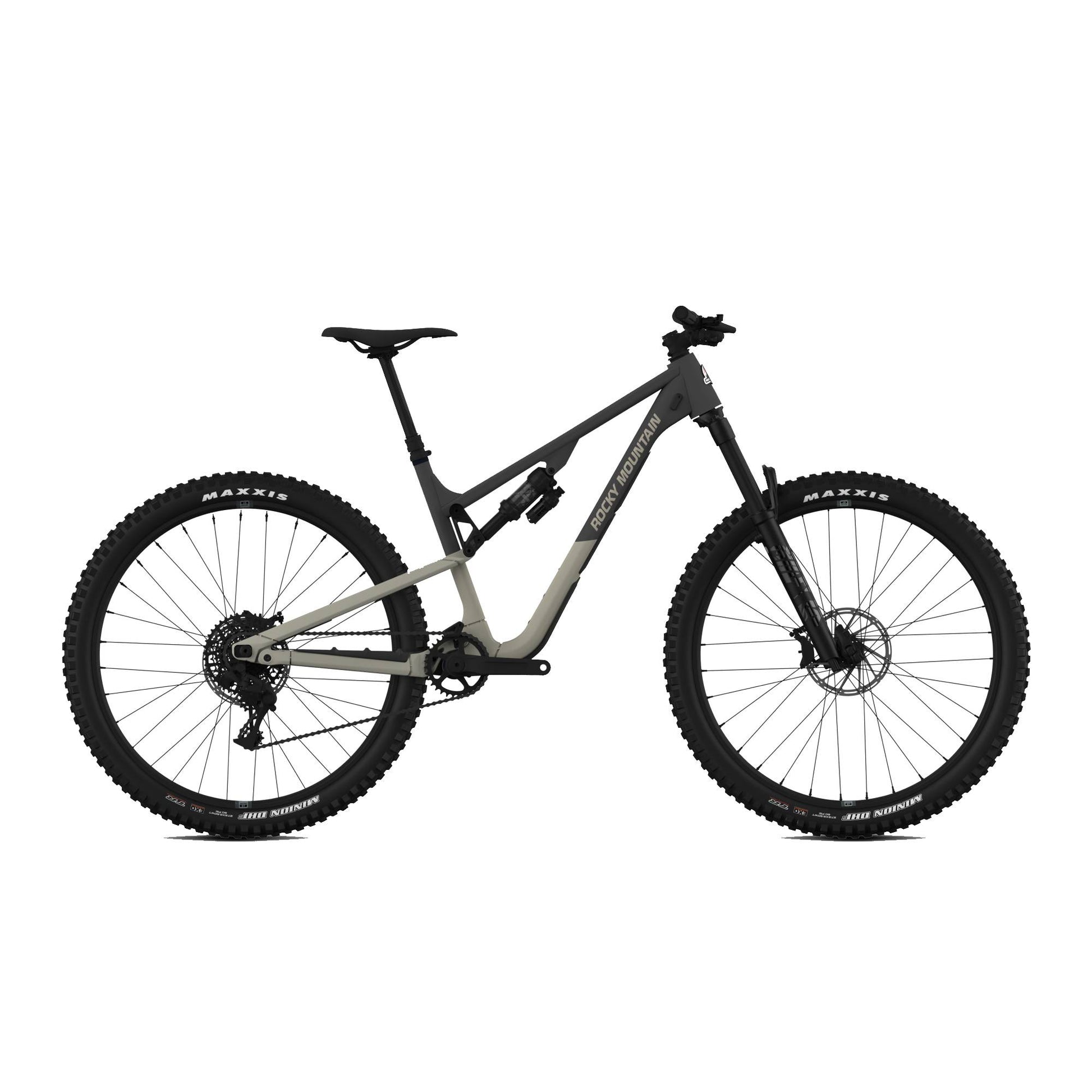

Rocky Mountain Instinct Alloy 30 Bike

Overview

Intended use: Trail

Rear travel: 140

Description

In search of a quiver-killer? we’ve got you covered with the Instinct Alloy. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.

Specifications

Frame

FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM™ Alloy Rear Triangle

Fork

• RockShox 35 Gold RL 150mm | 27.5 = 37mm Offset | 29 = 42mm Offset

Front

• Travel:150

Shock

• RockShox Deluxe Select RT | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ

Rear

• Travel: 140

Headset

• FSA ZS56|66 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Stem

• Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm

Handlebar

• Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Grips

• ODI Elite Pro Lock On

Brakes

• Shimano MT4120 4 Piston | Resin Pads

Shifters

• Shimano Deore 12spd

Rear Derailleur

• Shimano Deore 12spd

Cranks & Chainring

• Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm

Bottom Bracket

• Shimano SM-BBMT500

Cassette

• Shimano Deore 10-51T 12spd

Chain

• Shimano M6100

Front Hub

• Shimano TC500 | 15x110m | 28H

Rear Hub

• Shimano TC500 Boost 148mm | 28H

Spokes

• 2.0 Stainless

Rims

• WTB ST i30 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl

Tires

• F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready //

Seatpost

• X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD - LG = 170mm | XL = 200mm

Saddle

• WTB Volt 142

Weight

• 36 LBS|16.3 KGS
