Overview
Road Reimagined
Go long, go short, go fast. This is WorldTour performance for real world rides.
Model Description

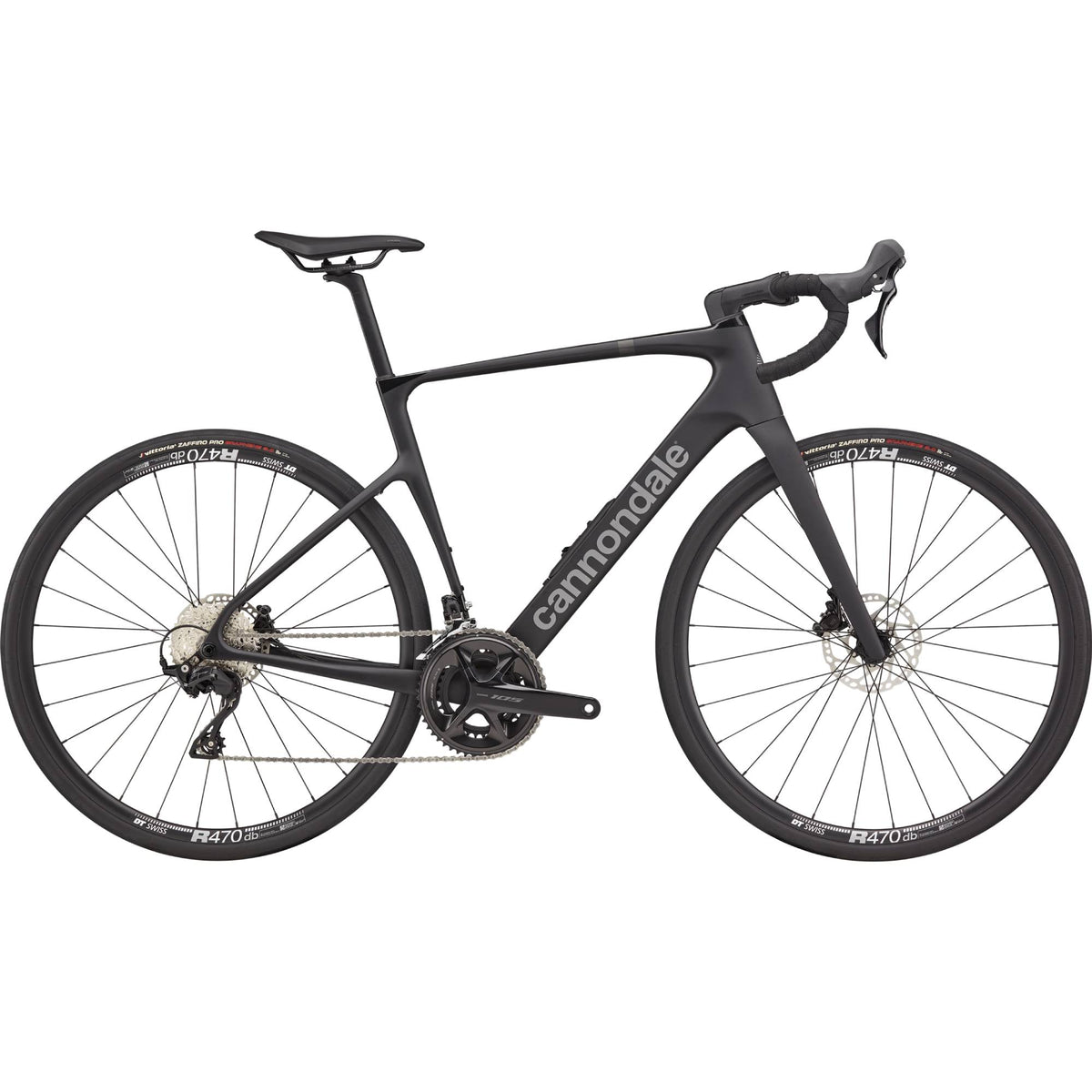

Lean spec. Full send. Synapse Carbon 5 brings Cannondale’s high-comfort, high-capability ethos to a more grounded spec—Shimano 105 mechanical shifting, carbon frame magic, and wide clearance for real-world roads. Whether it’s your first serious bike or your fifteenth, this one rides like it’s in on the secret: the right bike makes all the difference.
What it's for
Comfortable high-performance road riding, long distance missions, fast group rides
Highlights
- Lightweight, smoothly compliant, sleekly aero Synapse carbon frameset with StashPort downtube storage
- Smooth, consistent, reliable 2x12-speed shifting from Shimano's trusted 105 mechanical drivetrain
- DT Swiss 470 rims with Vittoria Zaffiro Pro V 32c tires - grip, durability, and speed
- Cannondale Conceal stem routes cables neatly through the headtube for reduced drag and sleek looks
Specs
Details
-
Platform Synapse Carbon
-
Model NameSynapse Carbon 5
-
Model CodeC12085U
Frameset
-
FrameSynapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
-
ForkSynapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
-
HeadsetIntegrated, 1-1/8" - 1-1/2"
Drivetrain
-
Rear DerailleurShimano 105 7100
-
Front DerailleurShimano 105 7100, braze-on
-
ShiftersShimano 105 7100, 12-speed
-
ChainShimano 105 7100, 12-speed
-
CrankShimano 105 7100, BSA, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)
-
Rear CogsShimano 105 7100, 11-36, 12-speed
-
Bottom BracketShimano BSA 68
Brakes
-
BrakesShimano 105 7170 hydraulic disc, 160/160 RT64 centerlock rotors
-
Brake LeversShimano 105 7120 hydraulic disc
Wheels
-
RimsDT Swiss R470 DB, 28h
-
SpokesStainless Steel, 14g
-
Tire Size32
-
Wheel Size700c
-
Hubs(F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock
-
TiresVittoria Zaffiro Pro V, 700x32c
Components
-
HandlebarVision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)
-
StemCannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48m), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)
-
GripsCannondale Bar Tape, 3.5mm
-
SaddleFizik Terra Argo X7, 150mm
-
SeatpostHollowGram 27, Alloy, 2 bolt clamp, 330mm, 15mm offset
**Please note that, based on component availability and other factors, specifications are subject to change without notice.**
