Overview
Road Reimagined
Go long, go short, go fast. This is WorldTour performance for real world rides.

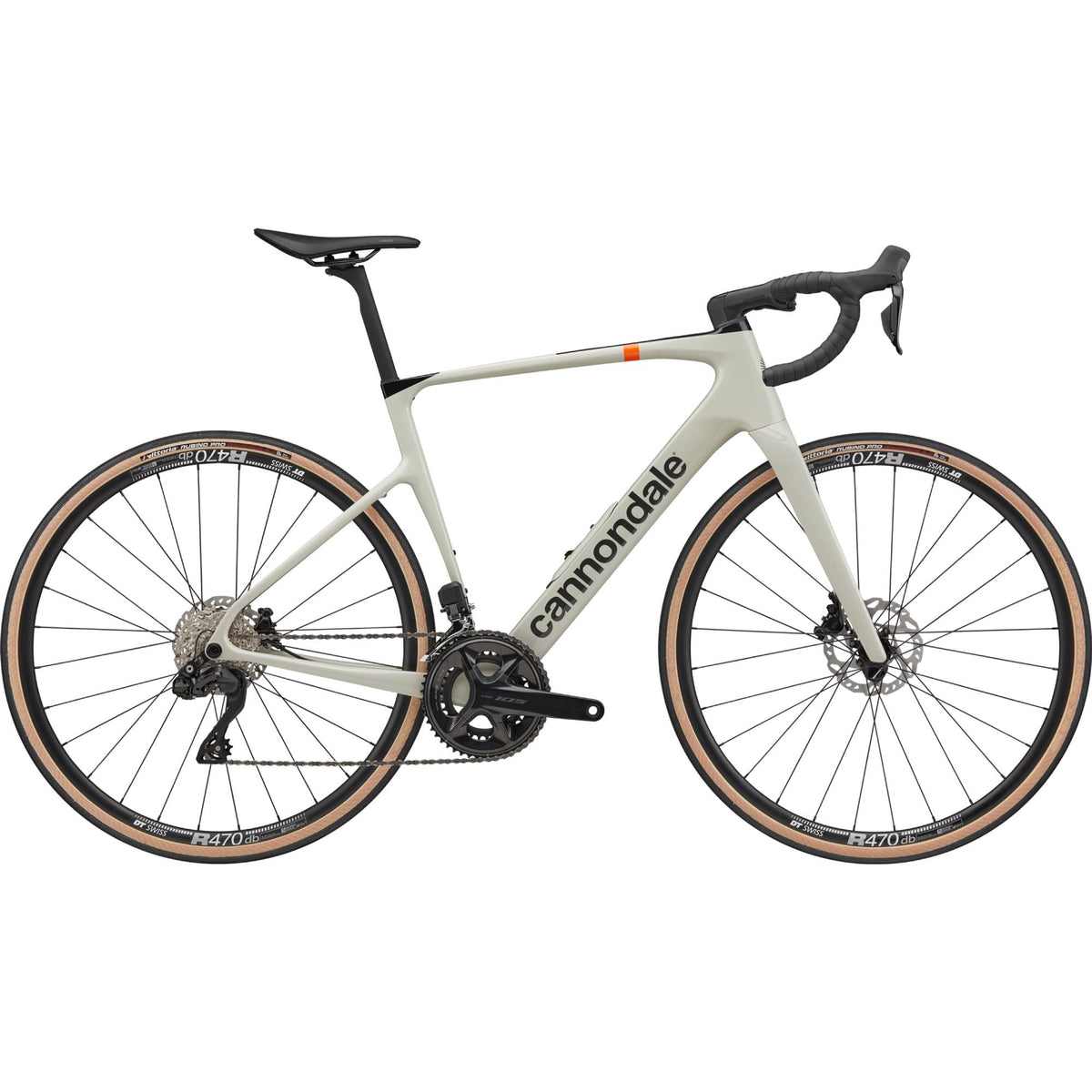

Model Description
Wireless brains meet all-road brawn. Synapse Carbon 4 runs Shimano 105 Di2 for a shifting experience that feels straight off the pro tour, minus the bank loan. The frame delivers that signature Synapse ride—quietly fast, endlessly composed—and plays nice with wide tires, fenders, and long days. Call it the sweet spot between Sunday speed and weekday practicality.
What it's for
Comfortable high-performance road riding, long distance missions, fast group rides
Highlights
- Lightweight, smoothly compliant, sleekly aero Synapse carbon frameset with StashPort downtube storage
- Shimano 105 Di2 – Impressively smooth shifting from Shimano's journeyman electronic 2x12-speed drivetrain
- DT Swiss 470 rims with Vittoria Rubino Pro IV 32c tires - grip, durability, and speed
- Cannondale C1 Aero 27 Carbon seatpost - speed meets comfort
- Fizik Vento Argo R5 saddle - ergonomic comfort with pressure relieving cutout
Specs
Details
-
Platform Synapse Carbon
-
Model NameSynapse Carbon 4
-
Model CodeC12075U
Frameset
-
FrameSynapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
-
ForkSynapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
-
HeadsetIntegrated, 1-1/8" - 1-1/2"
Drivetrain
-
Rear DerailleurShimano 105 Di2 7150
-
Front DerailleurShimano 105 Di2 7150, braze-on
-
ShiftersShimano 105 Di2 R7170, wireless, 12-speed
-
ChainShimano 105 7100, 12-speed
-
CrankShimano 105 7100, BSA, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)
-
Rear CogsShimano 105 7100, 11-34, 12-speed
-
Bottom BracketShimano BSA 68
Brakes
-
BrakesShimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
-
Brake LeversShimano 105 Di2 7170 hydraulic disc
Wheels
-
RimsDT Swiss R470 DB, 28h
-
SpokesStainless Steel, 14g
-
Tire Size32
-
Wheel Size700c
-
Hubs(F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock
-
TiresVittoria Rubino Pro IV, 700x32c
Components
-
HandlebarVision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)
-
StemCannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48m), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)
-
GripsCannondale Bar Tape, 3.5mm
-
SaddleFizik Vento Argo X5, 140mm
-
SeatpostCannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)
