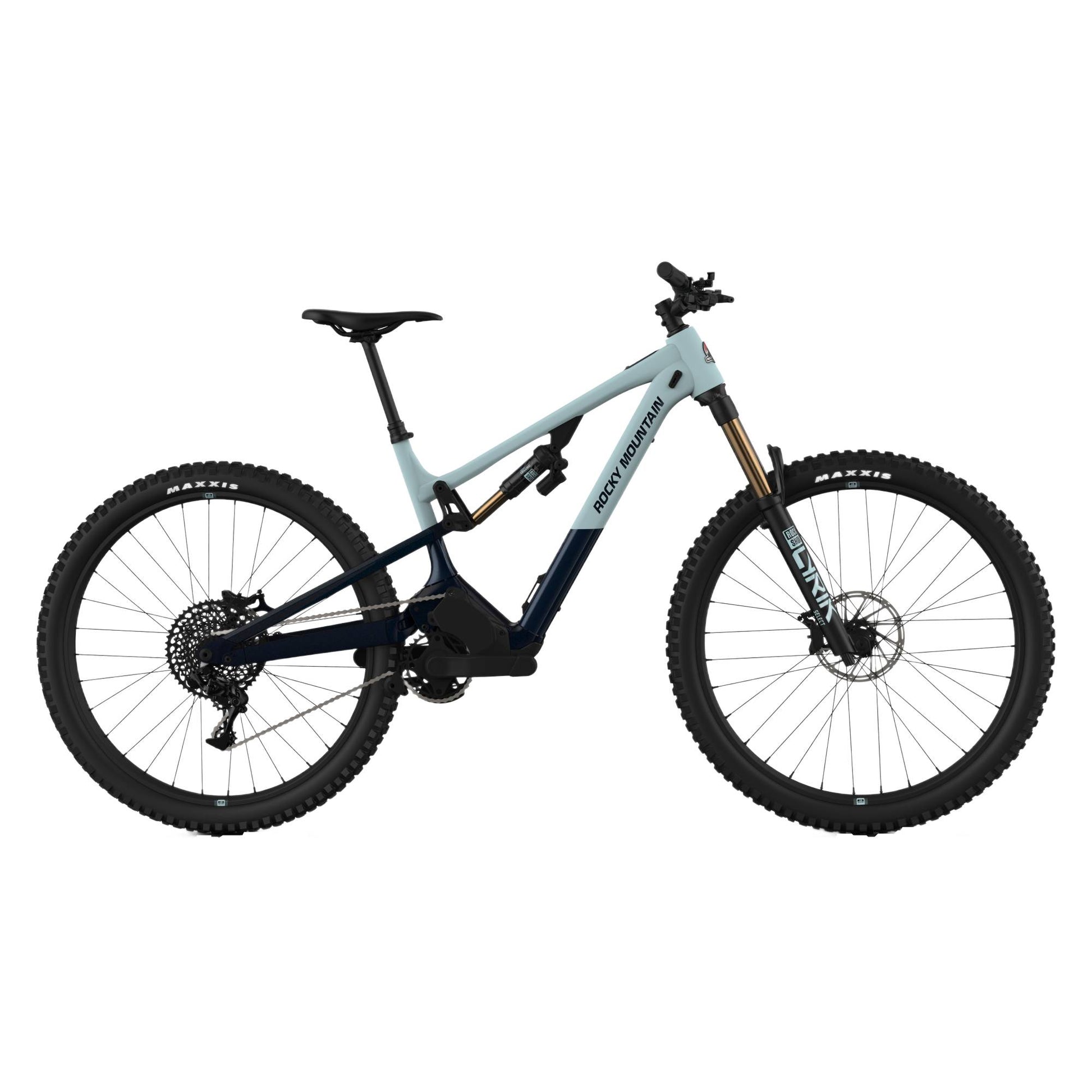

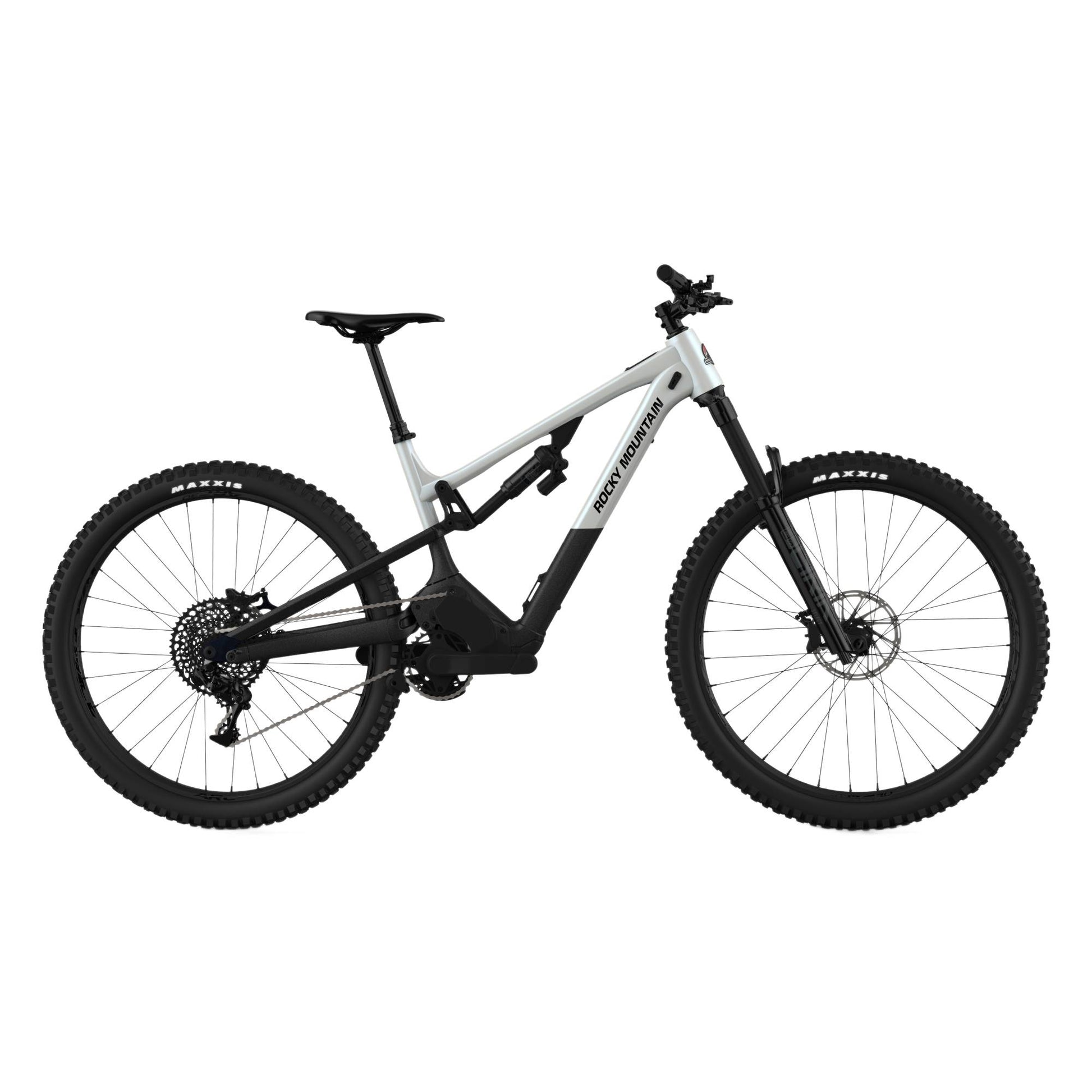

Rocky Mountain Instinct Powerplay SL Alloy 50 E-Bike

Specifications

Frame: FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | FORM™ Alloy Rear Triangle

Fork:RockShox Lyrik Select 150mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset

Front Travel:150

Rear Shock:SM-XL: Rock Shox Super Deluxe Select | 230x57.5mm | XS: Rock Shox Deluxe Select+ | 210x52.5mm | Sealed Bearing Eyelet | 25x8mm F Hardware | Size-Specific tune in FAQ

Rear Travel:145

Headset:FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

Stem:Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm

Handelbar:Rocky Mountain AM | 780mmWidth | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp

Grips:ODI Elite Pro Lock On

Brakes:Shimano MT6120 4 Piston | Metal Pads

Shifters:Shimano XT

Rear Derailleur:Shimano XT

Cranks & Chainring:Race Face Turbine Cinch | 34T Ring | 30mm Spindle | XS - XL = 165mm

Bottom Bracket:Race Face BB92 30mm

Cassette:Shimano Deore 10-51T 12spd

Chain:Shimano M6100

Front Hub:Rocky Mountain SL Sealed Boost 15mm

Rear Hub:Novatec MTB SL Pro Boost 148mm

Spokes:DT Swiss Competition 2.0/1.8/2.0

Rims:WTB KOM Trail i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl

Tires:Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl

Seatpost:X Fusion Manic Composite 30.9mm |XS - SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm

Saddle:WTB Volt Race 142 | Cromoly rails

Drive System:Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 550w Max Power | 65Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada

Battery:480 Wh Removable Integrated Li-Ion

Display:Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration

Charger:Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector
